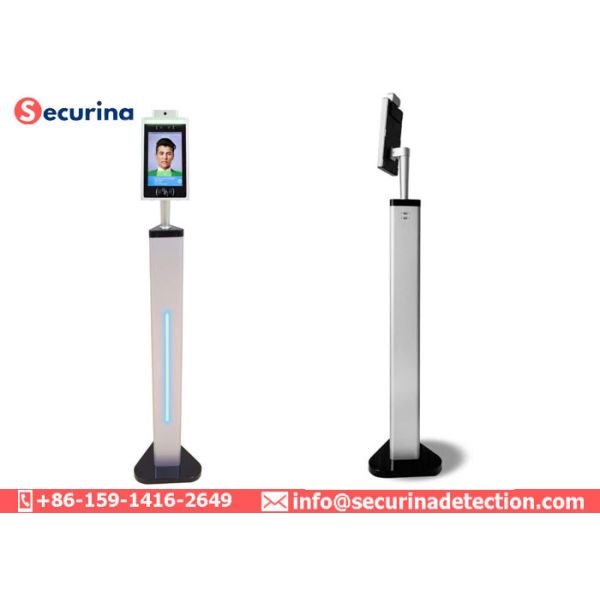

DC 12V Power Supply Face Recognition Body Temperature Scanner With Infrared Sensor
SA230 Precise temperature measurement, over temperature alarm: Exceeding the setting high and low temperature or without wearing a mask, the instrument will alarm with 50cm distance measurement and accuracy measurement in ±0.5(ºC); Face recognition HD camera: face recognition algorithm to create fast and accurate temperature measurement. Aluminum alloy case: Dustproof, waterproof and anticorrosive can effectively ensure the stable operation of the product. Multi-scenario application: in a crowded place, the epidemic can be effectively prevented.
With nine core advantages: 1. Human self-help touchless temperature detection; 2 Clock in; 3. Body temperature detection automatic recording; 4. Mask mode available; 5. Abnormal temperature automatic alarm; 6. Infrared dynamic ranging; 7. Multi-scenes application; 8. Information pushing; 9. Information uploading.
Securina Detection System Co., Limited is a high-tech R&D company located in Shenzhen, China. At the same time, Securina is also a supplier/exporter/manufacturer with both manufacturing and trading security screening equipments, like x-ray security scanners, walk through metald etectors, hand held metal detectors, under vehicle inspection system, traffic control barrier, roadblocker, spike barrier, hydraulic bollards.etc
In order to meet the market demand of the epidemic situation at that time, infrared temperature measurement equipment and disinfection equipment were developed and produced efficiently. It has been exported to the world and received good reviews from customers from the Kazakhstan, Russia, Belarus, Czechoslovakia, Uzbekistan, Spain, France, Poland, Germany, Belgium, Hungary, Finland, Iran (Afghanistan) and other markets.
Specifications of SA230:
| Hardware |
| CPU | RK3288 |
| Operation system | andriod |
| storage | 8GB |
| Image device | 1/2.7" CMOS |
| Len | 4.3mm |
| Camera |
| Camera | Binocular camera, support in vivo detection |
| pixels | 2 million pixels, 1920*1080 |
| Sensitometry | Color 0.01Lux @F1.2(ICR);W/B 0.001Lux @F1.2 |
| SNR | ≥50db(AGC OFF) |
| Wide dynamic range | ≥80db |
| Face recognition performance |
| Recognition height | 1.2-2.2m adjustable |
| Recognition distance | 0.5-2m |
| Angle of view | 40 degrees up and down |
| Recognition time | <500ms |
| Function | Support 30,000 face comparison libraries |
| Body Temperature Measurement |
| Temperature range | 28-45(ºC) |
| Temperature accuracy | ±0.5(ºC) |
| Detection distance | 0.5m |
| Response time | <300ms |
| Interface of ports |
| Network port | RJ45 10M/100M Adaptive Ethernet port |
| Wiegand interface | Wiegand input and output are supported, and wiegand 26 and 34 are supported |
| Alarm output | 1 way switching output |
| USB | 1 USB interface (external ID card reader) |
| Basic specification |
| Power supply | DC12V/3A |
| Power | 20W(MAX) |
| Operation temperature | 0ºC ~+40ºC |
| Operation humidity | 5~90% Relative humidity, no condensation |
| Size | 135.2(W) * 79(T) *365.3(H)mm |
| Weight | 1.6kg |
| Column diameter | 33mm |
